LED Komplettleuchten

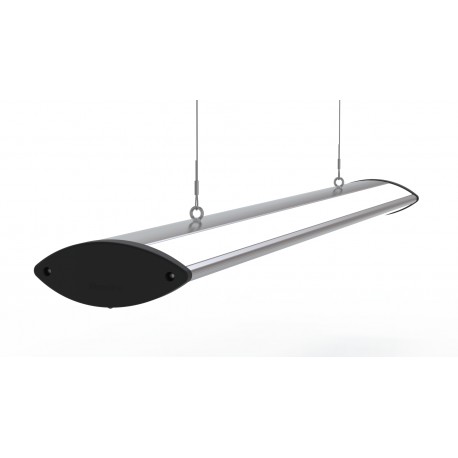

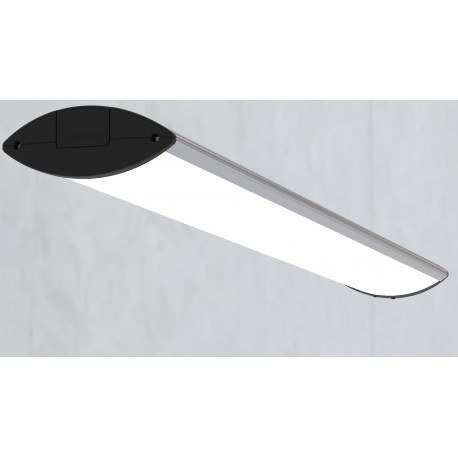

LED Komplettleuchte modular erweiterbar von 40 bis 150 Watt
- Ip-code: IP51
- Glass: Frosted
- Type of LED Driver: Tridonic
- Type of sensor: Neoline
- Numbers of PBC: 2-6
- Numbers of LED per PBC: 130 pcs.
- Dimmable: Yes, from 3 – 100%
- Type of LED: SMD
- Power (W): 20W - 150W
- Color temperature: 3000/4000/5000K
- Luminous efficiency Lm/W: up to 190 Lm/W
- Color rendering index (Ra): >85 RA
- Power factor: >0.95
- Efficiency: >92%
- Beam angle: 120°
- Voltage: 185V-265V
- Frequency: 50 - 60Hz
- Driver: included
- Cabinet: Alu-plastic
- Remote control range: >12 meter
- Through wiring: Yes, 3 phase + DALI
- Time delay: Adjustable
- Power consumption: 0,680A
- Operating temperature: -40°/+50°C
- Average life expec. at 25°C: 60000h
- Dimensions (H X B): 200 x 78 mm
- Length: 1475 mm
- Energy class: A ++
- Warranty period: 5 years
